GSK CNC 980MDi Milling CNC Controller
Production lead time: 25 days

GSK980MDi_CNC_Milling_Machine_Controller_User_Manual(PDF file, size 17.1MB)

GSK 980MDi is a member of the GSK980MD series product family and is the upqraded product of GSK980MDc
Based on the GSk-Link industrial Ethernet bus control technigue, GSK 980MDi is eauipped with servo drive units and servcmotors with absolute encoders, realizing 5-axis control and high-speed and high-precision motion control, with a minimuminstruction unit of 0.1um and a maximum running speed of 100m/min. lt can extend /0 and is suitable for miling and drllingmachines.

1. With GSK-Link industrial Ethernet bus control

2. 5-axis control, with a minimum control accuracy of 0.1μm and a maximum moving speed of 100m/min

3.With online CAM functions, it can access DXF documents to generate machining programs.

4.It supports the online configuration of servo parameters, real-time monitoring of servo state,and mechanical zero returning without DEC switch.

5.It has a programming guideline and automatic programming function for plane milling.

6.It supports I/O unit extension .

7.It supports the secondary development of display interfaces (custom pages).

8.It supports rigid tapping, cylindrical interpolation, and indexing table control.

9.It supports high-speed mold machining with small line segment programs.

10.It supports the control of peripheral axes, and there are a total of 5 control groups of peripheral axes.

11.It supports the breakpoint data recovery by the one-click.

12.It supports rigid tapping and roundness and waveform analysis.

13.It has the function of torque protection.

High-speed and high-precision control
GSK-Link industrial Ethernet buses are used. with a maximum running speed of 100m/min. Servo motors withhigh-resolution absolute encoder and GR series servo drivers as standard, realizing high-precision control of thefeed and CS axes.

Online CAM function
After CAD documents are imported to the system, they can be displayed and post-processed by the system, and then the machining programs for drilling and groove milling can be automatically generated without any programming.

High-speed mold machining with small line segment procedures
For small line segment programs generated by UG,Mastercam, and other programming software,high-speed and high-precision mold machining can be realized.




Peripheral axis control
Peripheral axis control can be programmed independently or in combination with the main program as an independent channel control.
One clamping can realize the simultaneous machining of 4 different programs, which improves the efficiency by 4 times.

One -click breakpoint recovery

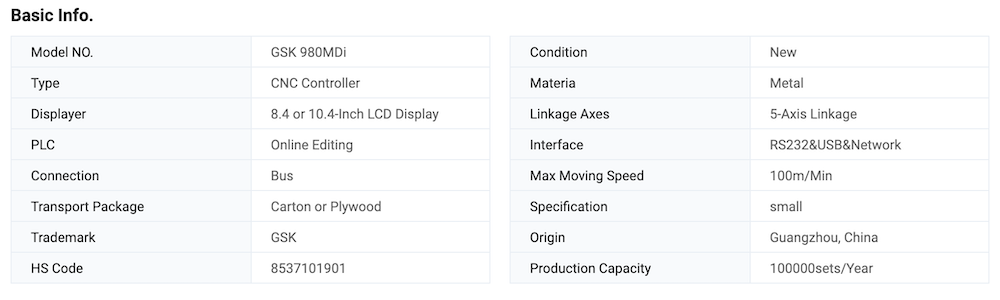

Technical Specification



installation dimension
