• It adopts a fully enclosed air-cooled structure with an attractive appearance and a compact design.

• It uses optimized electromagnetic design, featuring low electromagnetic noise, high efficiency and strong overload capacity.

• High-precision bearings and high-precision rotor dynamic balancing technology are adopted to ensure stable operation.

• Corona-resistant enameled wires are used, with Class F insulation rating and IP54 protection class.

• A high-speed and high-precision encoder is equipped to enable high-precision speed and position control.

• It has a wide speed regulation range, excellent impact resistance and a long service life.

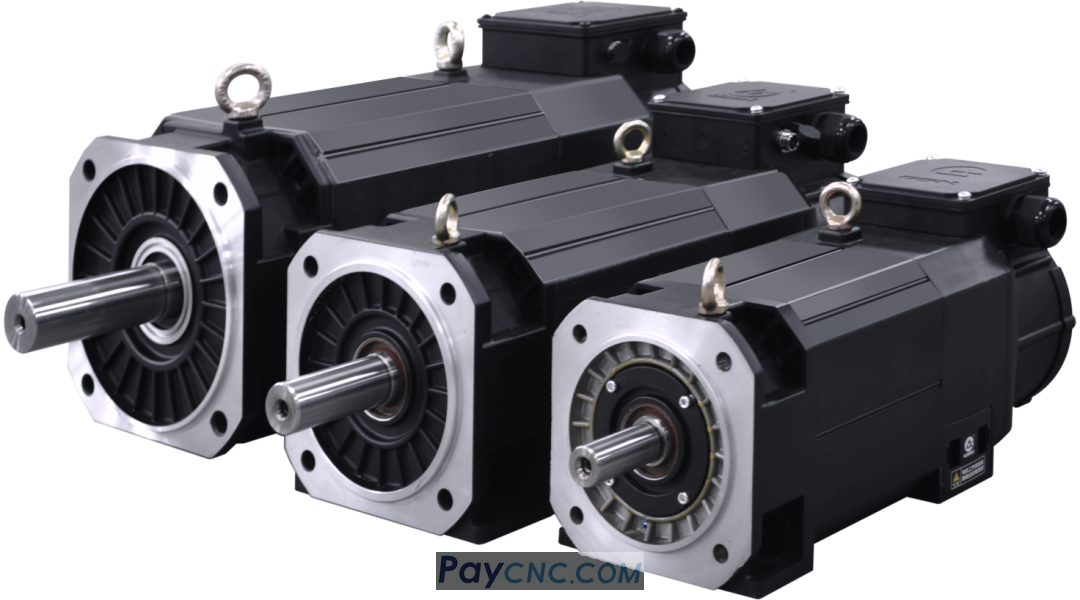

ZJY comprises six series with over 200 motor models.

• Model：ZJY141A、ZJY182A、ZJY208A、ZJY265A、ZJY320、ZJY380

• Rated Power：1.5kW～132kW

• Rated Torque：4.8N·m～840N·m

• Maximum Speed：3000 r/min ~24000 r/min

• Rated Speed：350r/min ～ 4500r/min

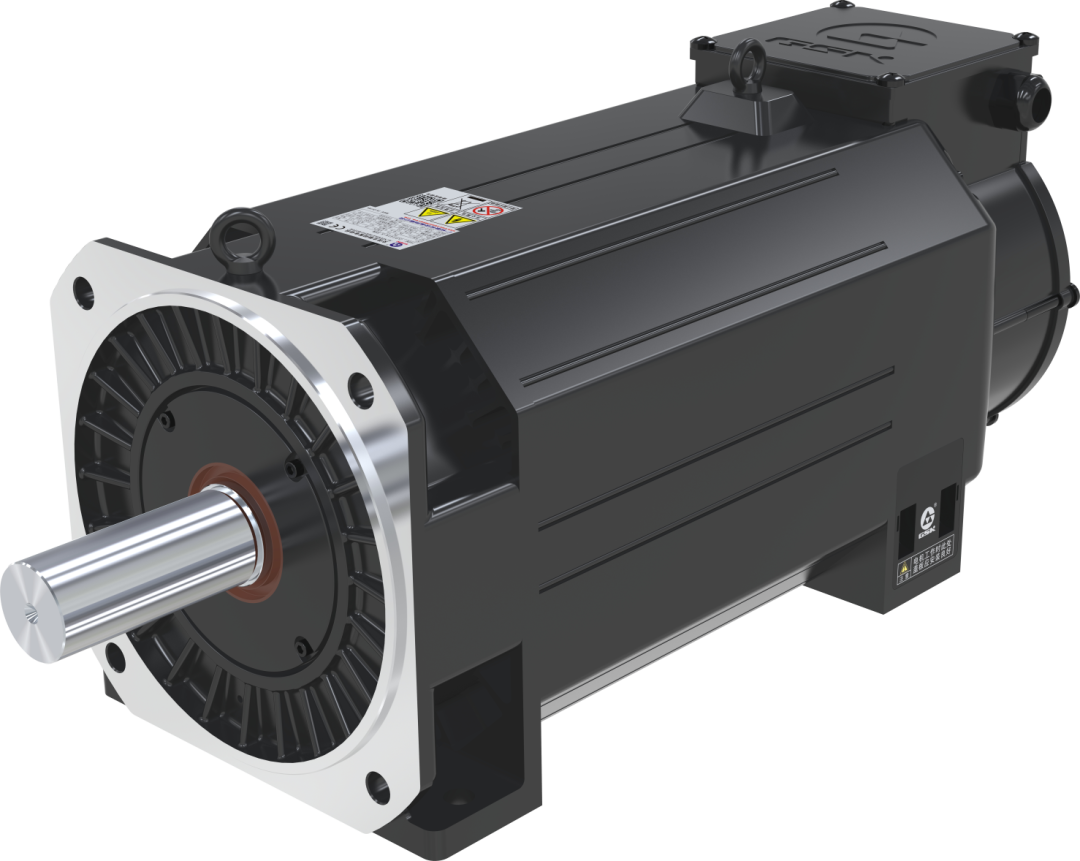

• Designed specifically for drilling and tapping center machine tools, with a maximum speed ranging from 12,000 r/min to 15,000 r/min.

• It adopts an optimized electromagnetic design, featuring low electromagnetic noise, stable operation, high impact resistance, and a long service life.

• High-precision rotor dynamic balancing and integrated machine dynamic balancing are employed, resulting in low vibration and noise.

• Vibration Class: Grade B (GB 10068-2020), with vibration velocity less than 0.5 mm/s.

• It owns strong overload capacity and a wide constant power range.

Model

ZJY182A：

• ZJY182A-3.7EG、ZJY182A-5.5EG、ZJY182A-7.5EG

ZJY208A：

• ZJY208A-5.5CF、ZJY208A-7.5CF、ZJY208A-11CF

• ZJY208A-5.5EF、ZJY208A-7.5EF、ZJY208A-11EF

ZJY265A：

• ZJY265A-15CF、ZJY265A-18.5CF、ZJY265A-22CF

Rated Speed

C:2000 r/min 、E:3000 r/min

 Maximum Speed

F:12000 r/min、G:15000 r/min



• ZJY182A-3.7BL5.5BL

• ZJY208A-5.5BL7.5BL9BL

• ZJY265A-11BL15BL

Rated Power ：3.7kW～15kW

Rated Speed：1500r/min

Maximum Speed：4500 r/min

Rated Torque：24N·m～95.5N·m



• Designed specifically for high-speed drilling and tapping machine tools, with a maximum speed of 24,000 r/min.

• It adopts an optimized electromagnetic design, featuring low electromagnetic noise, stable operation and high efficiency.

• The motor boasts strong overload capacity and a wide constant power range.

• High-frequency and low-loss silicon steel sheets are employed, enabling the motor to maintain excellent linear control performance across the entire speed range.

• Integrated machine dynamic balancing technology is adopted, with the balance precision grade controlled to G 0.4. This ensures stable, reliable, low-vibration and low-noise operation of the motor even within the maximum speed range.




  • It adopts an optimized electromagnetic design, featuring low electromagnetic noise, stable operation and high efficiency.

  • High-precision rotor dynamic balancing technology is applied, ensuring minimal vibration and low noise.

  • The integral painting process is adopted to achieve better waterproof performance.



  Model

  • ZJY320-15WL、ZJY320-18.5WL、ZJY320-22WL、ZJY320-30WL

  • ZJY320-30BL、ZJY320-37BL、ZJY320-45BL、ZJY320-55BL

  • ZJY320-30BM、ZJY320-37BM

  • ZJY320-15VLD、ZJY320-15TLD、ZJY320-22VLD、ZJY320-22VMD、ZJY320-22ULD

  Rated Speed：400~1500r/min

  Maximum Speed：4500~6000r/min

  Rated Torque：147N·m ~420N·m

  30min Torque：175N·m ~573N·m

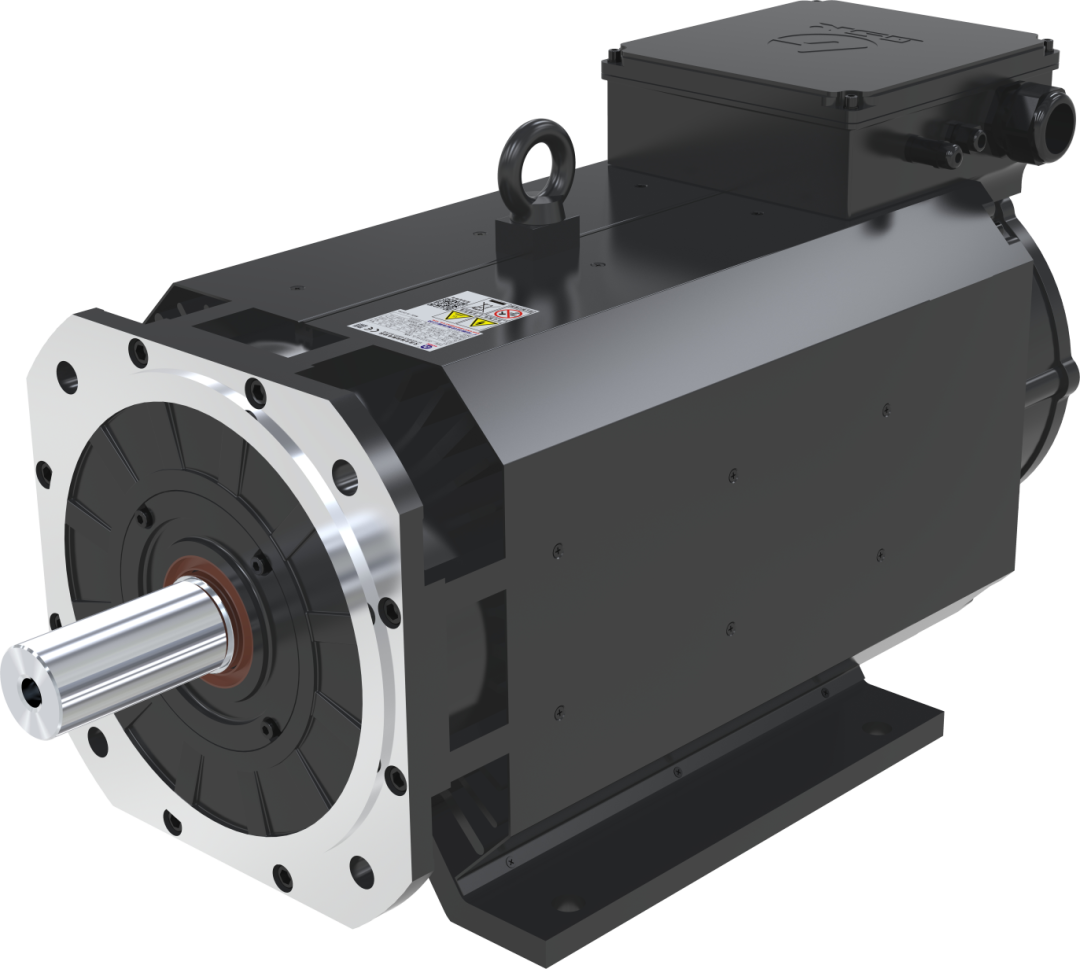

  Designed specifically for machine tools requiring high power or high torque.

  It adopts an optimized electromagnetic design, featuring low electromagnetic noise, stable operation and high efficiency.

  High-precision rotor dynamic balancing technology is applied, ensuring minimal vibration and low noise.

  The motor adopts a cast housing combined with sheet metal air ducts design, which delivers high structural strength, excellent protection performance and superior heat dissipation.
