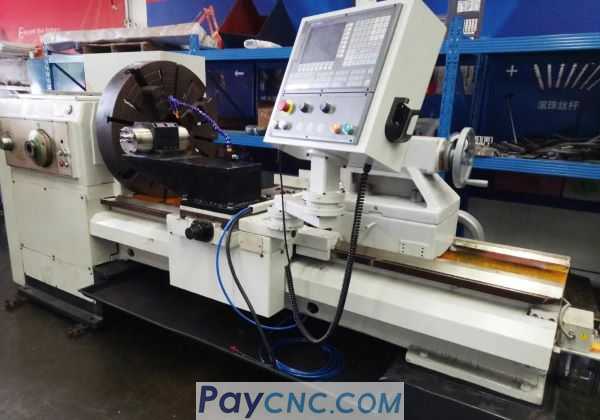

Universal lathe turn into CNC lathe
The outer circle of the mold is indexed and milled, and the milling angle needs to be adjusted;

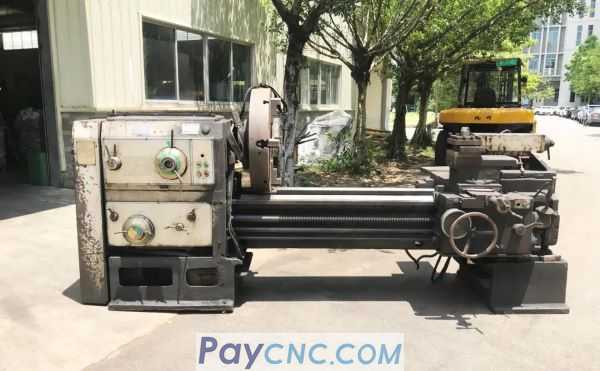

Use the old machine C6180*1500 ordinary car to carry out numerical control transformation.solution
The machine tool grinding rail is sticked with plastic shovel to restore geometric accuracy;
X/Z axis modified ball screw feed mechanism;
The main shaft is replaced with a servo motor, a reducer is added, and the modified synchronous belt is directly connected to the main shaft;
Install electric spindle, make bracket and manual angle adjustment;

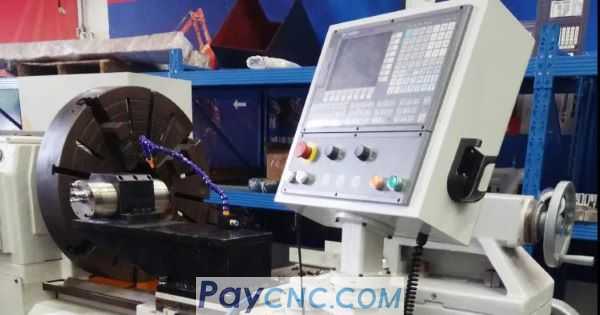

Configure GSK980TDi CNC system.
Application effect
Meet customer's workpiece processing needs;
It replaces the original imported vertical lathe processing, which greatly saves the cost of equipment use.
