The robot replaces the manpower to complete the loading and unloading of the double-station quenching machine;

It is convenient for manual refilling, and the frequency of manual refilling is not higher than 1h/time;
With the first quality inspection function, it will enter normal production after manual confirmation.





solution

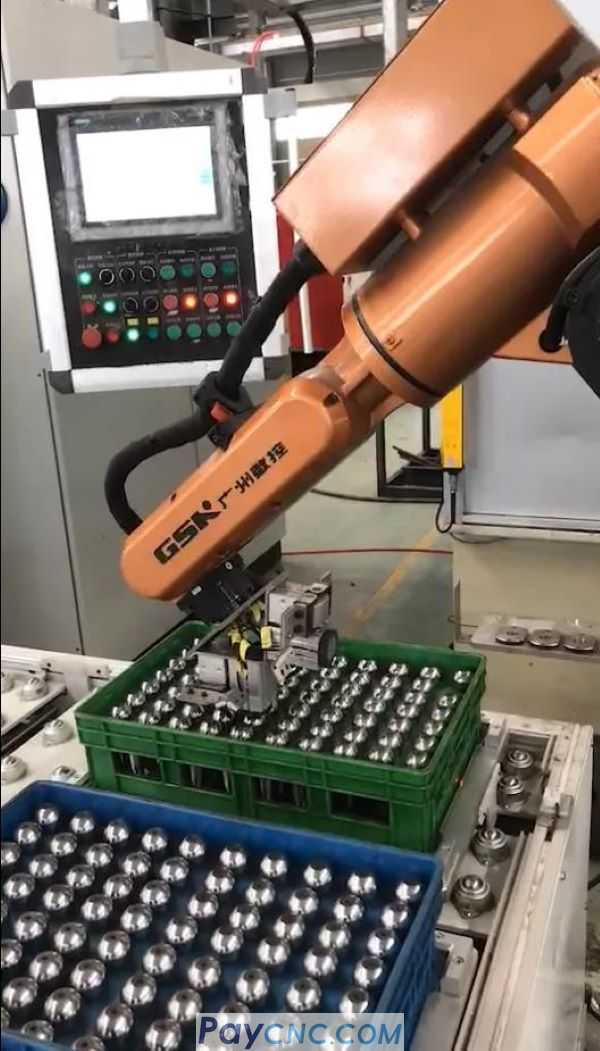

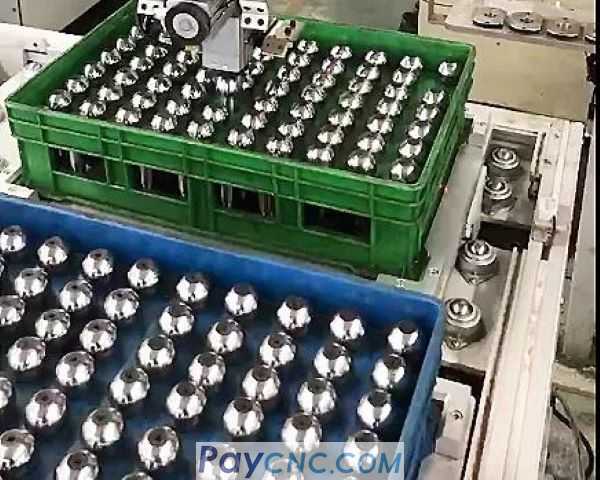

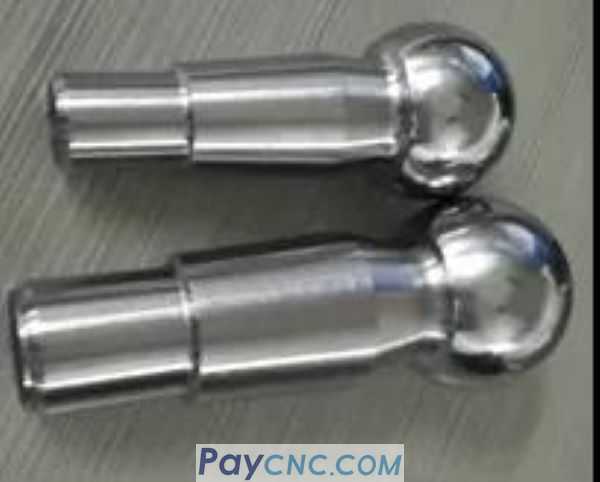

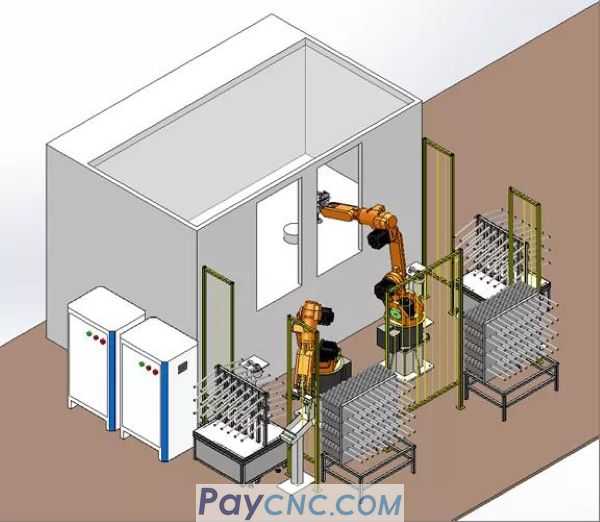

4 RB08 handling robots, equipped with two double-station quenching machines. According to the different types of workpieces, the ball-head workpiece unit is equipped with a material frame circulation silo, a workpiece positioning table, and a quality inspection table; the joint unit is equipped with a suspended silo, workpiece positioning table, quality inspection table, and suspended loading silo;

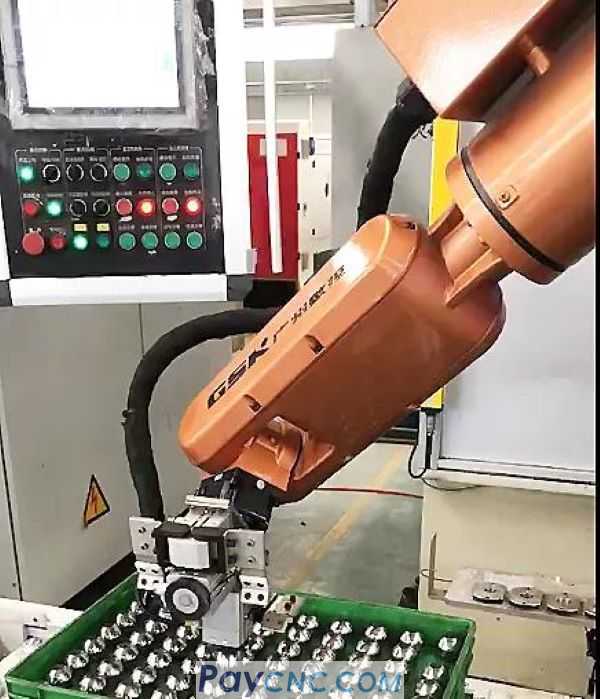

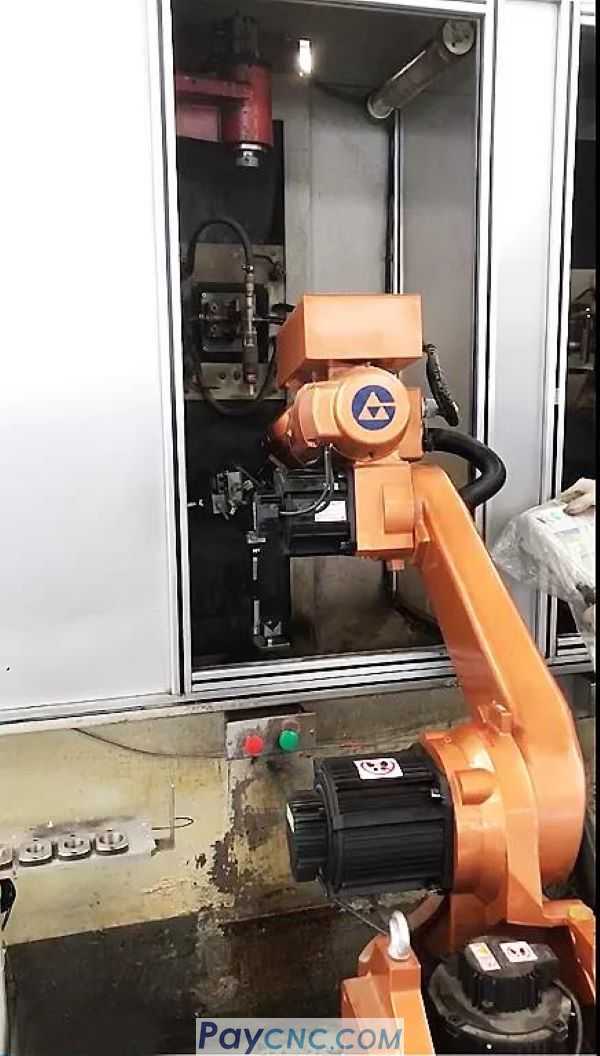

The robot completes the automatic operation of taking the workpiece—workpiece positioning—workpiece clamping—quenching—cutting.





Application effect


Adopt the method of manual adjustment and production change, and solve the problem of multi-model and small batch production with less transformation cost;
Reduce labor intensity, work stably, maximize efficiency.
