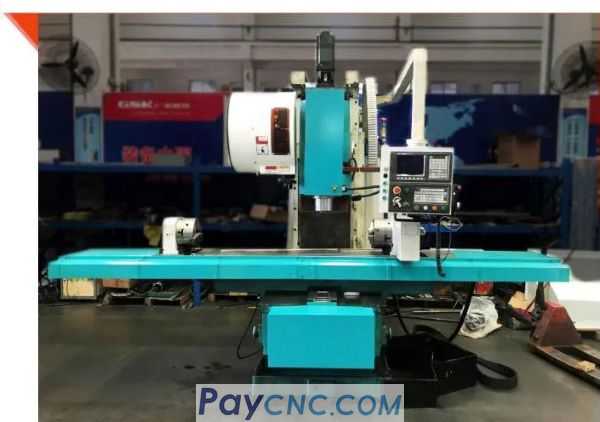

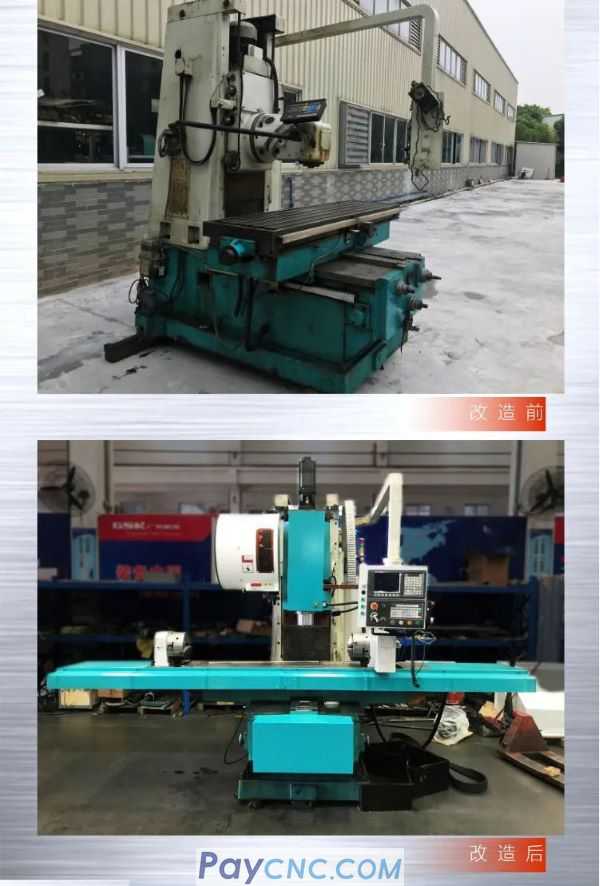

Manual milling machine CNC retrofit
The ordinary milling machine was changed to a CNC milling machine, and the tool magazine was added for automatic tool change;
2 long axis workpiece, processing length 2300mm, original machine line
The distance is only 1600mm;
3External milling, drilling, tapping, engraving and indexing are all
Fabric processing.
solution
X/Y/Z modified ball screw feed mechanism;
Extend the worktable and guide rail support, the X-axis stroke is increased to
2300mm
Remove the original spindle box, redesign the spindle box and replace the spindle;
Install a disc-type tool magazine, a CNC turntable, and an electric spindle at the outer end of the tailstock headstock, high-speed engraving and milling scales
Configure GSK218 CNC system.
