The number of system control axes is 4 axes;

The spindle can realize speed and position control;
Realize the automatic retrieving and taking action of the truss in the machine tool processing.



solution

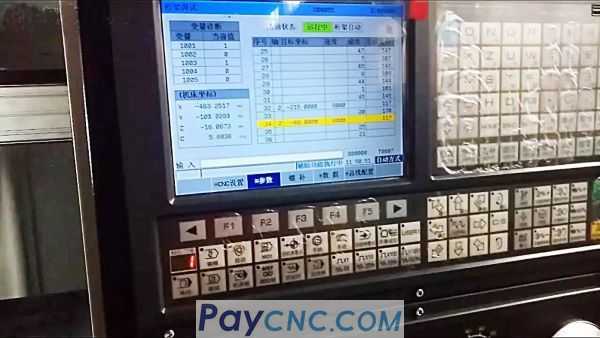

The maximum control axis number of 980TC3 system is 5 axes;

The system's 5th axis control spindle can realize spindle speed and position mode control;

R & D and design of truss function to realize automatic truss retrieving and taking action during machine tool processing





Application effect

The truss can realize automatic retrieving and retrieving actions during machine tool processing, which can shorten the effective time of workpiece production and improve production efficiency

The truss program is freely programmable, and the actions, logic, and positions can be programmed like ordinary programs;

The truss forbidden zone is set to prevent machine tool collision caused by misoperation;

Teaching of truss position: move the truss axis to the corresponding position and read the coordinates directly, which is simple and convenient.
