How to solder a connector to a MPG?
Video on Youtube
Identify the MPG pinout (A, B, +5V, GND, Enable, etc.).
Use the correct connector that matches your CNC controller or pendant.
Strip and tin the wire ends before soldering.
Use a fine-tip soldering iron (around 320–350°C) and rosin-core electronic solder.
Slide heat-shrink tubing onto the wires before soldering, then shrink it to insulate each connection.
Verify continuity with a multimeter before plugging the MPG into the controller.
If the MPG uses crimp terminals (such as JST, Molex, or D-sub connectors), crimping the terminals is preferred over soldering because it provides better mechanical reliability.
Paycnc offers all kinds of MPG (Manual Pulse Generator)
If you could not find the exact model, you can send below information to paycnc@paycnc.com to get quotation.
1- What is the machine brand and model name?
2- What is the CNC controller brand and model name?

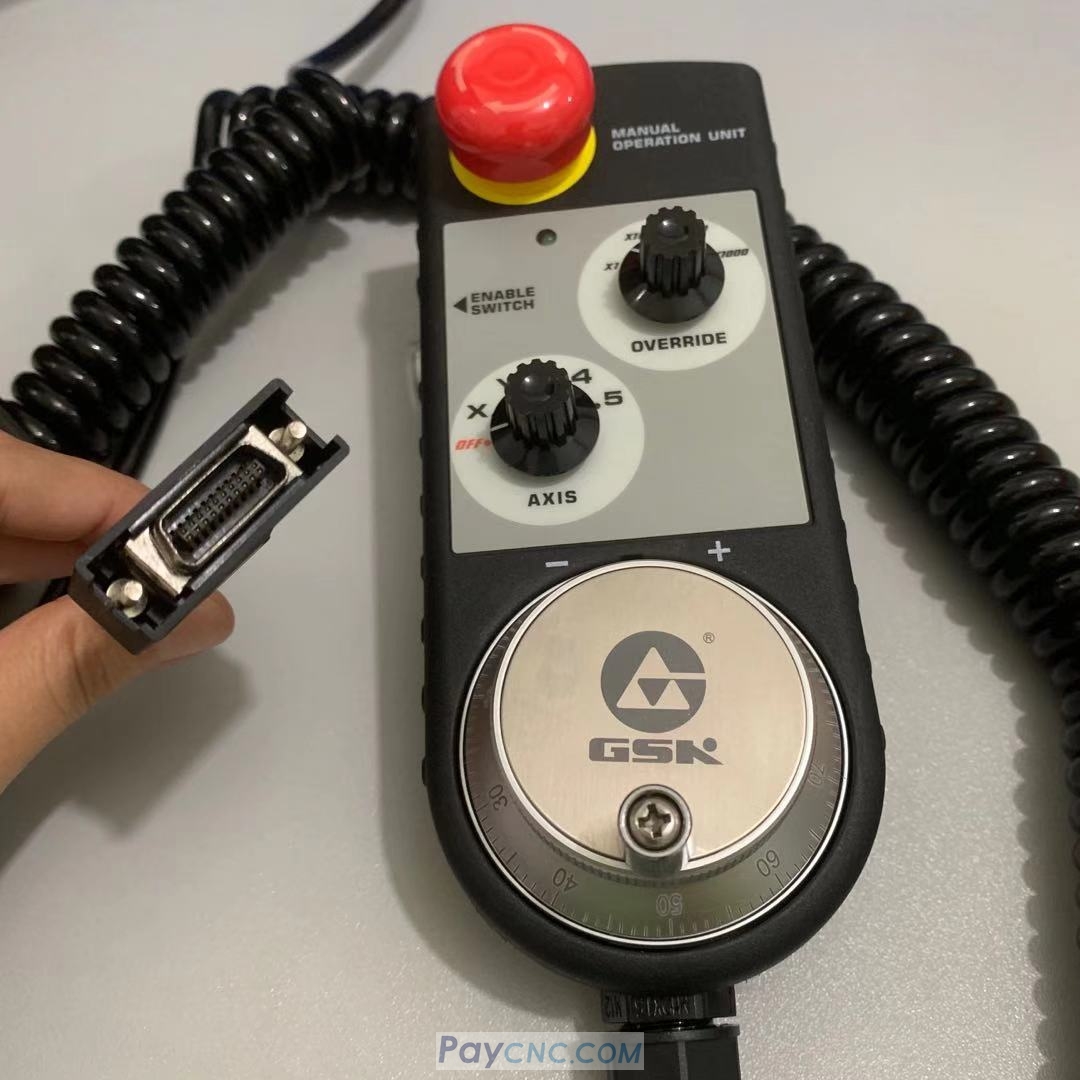

3- Please take photos of the MPG cable connector and the connection port on the machine.
