How to replace encoder on servo motor?
Video on Youtube
Disassembly Steps: First, remove the four screws on the motor protective cover and tap to remove the cover. Then, remove the top and bottom screws on the motor disc, tighten the motor shaft, and remove the middle screw. Use a long screw to push out the encoder.
Installation Steps: Insert the new encoder, first tightening the middle screw, then the two side screws. Some motors require fine-tuning the zero point with tools, but this model can be directly tightened. Finally, reinstall the back cover and tighten the four screws. The complete replacement process for the servo motor encoder has been demonstrated.

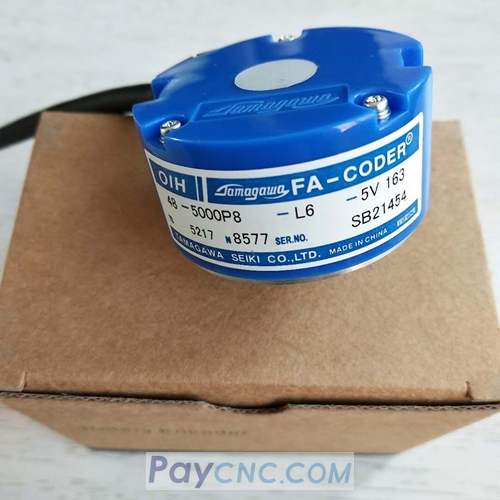

Paycnc offers different kinds of motor encoders.
If you could not find the exact model, you can send item photos and its model name to paycnc@paycnc.com or WhatsApp us to get quotation.
#rotary
#encoder
#servo
#motor
#Repair
Disassembly Steps: First, remove the four screws on the motor protective cover and tap to remove the cover. Then, remove the top and bottom screws on the motor disc, tighten the motor shaft, and remove the middle screw. Use a long screw to push out the encoder.
Installation Steps: Insert the new encoder, first tightening the middle screw, then the two side screws. Some motors require fine-tuning the zero point with tools, but this model can be directly tightened. Finally, reinstall the back cover and tighten the four screws. The complete replacement process for the servo motor encoder has been demonstrated.
Paycnc offers different kinds of motor encoders.
If you could not find the exact model, you can send item photos and its model name to paycnc@paycnc.com or WhatsApp us to get quotation.
