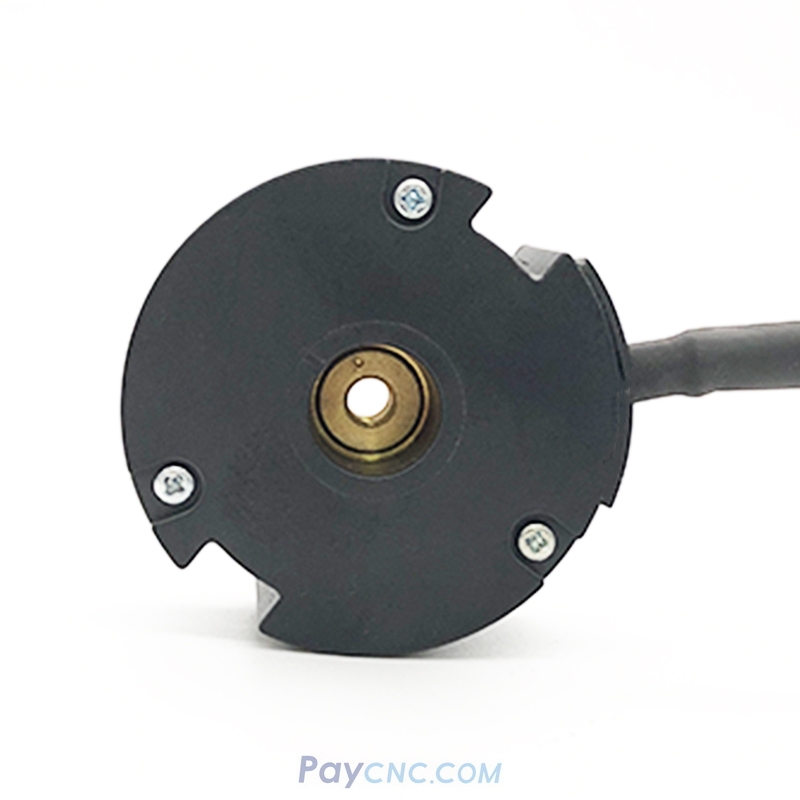

The disassembly and installation steps cover the entire process for the Inovance servo motor encoder.

Video on Youtube



Disassembly steps: First, remove the three screws from the circuit board and use a soldering iron to detach the LED from the board; then, adjust the position of the 24V motor (for models with a brake) to remove it, and finally, remove the two screws securing the LED to take off the encoder.
Installation steps: First, install the LED; clean any stains off the motor, reinstall it, and secure the screws; solder the new encoder circuit board, fasten and secure the three screws; and finally, check and adjust the clearance between the motor and the encoder.

Commissioning: Confirm the setting for parameter H01-11 is 200, and use the up/down keys to control forward and reverse rotation for the jog test. The video clearly highlights key operational details for encoder disassembly/installation as well as the relevant commissioning parameters.
