How to make polygon with GSK928TD-L CNC

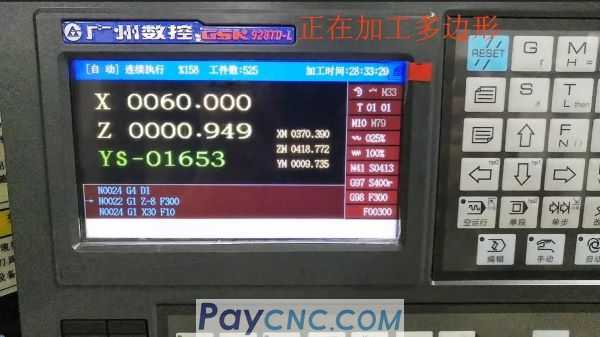

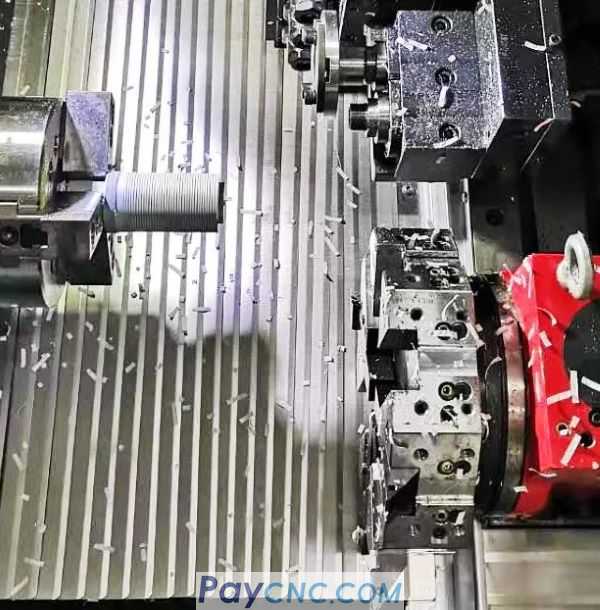

Equipped with 928TD-L CNC system to realize the processing of 1-999 polygons on the CNC lathe;
The number of system control axes is 3 axes;The main shaft is controlled by an ordinary frequency converter.
solution
The GSK 928TD-L CNC system has only 3 feed axes, while the spindle spindle is controlled by an ordinary inverter, and the Y axis is used to control the speed of the flywheel. According to the proportion of the polygon side number, the Y axis changes with the spindle speed.
Application effect

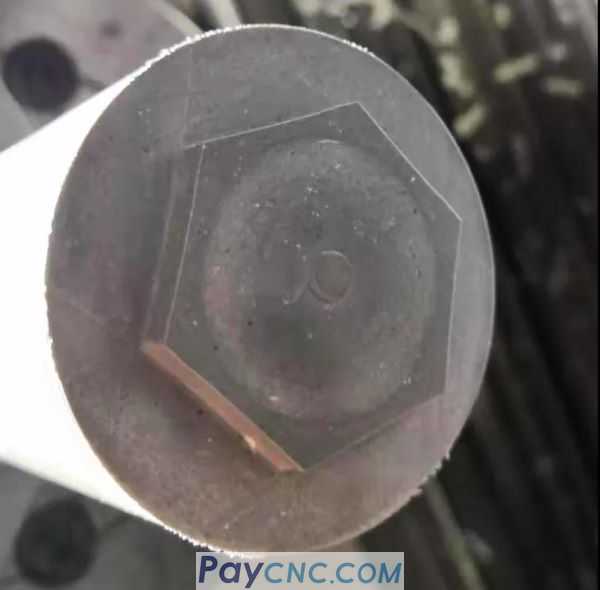

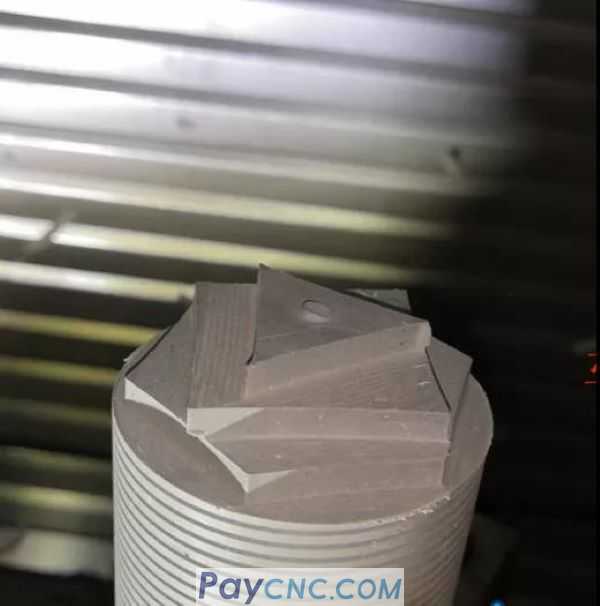

Realize the processing of 1-999 side polygons.
