Workpieces are clamped once to complete grinding;

According to the requirements of customer drawings, the workpiece speed reaches 100PRM, achieving high-speed rough and fine grinding, and the batch consistency is better;

With automatic grinding wheel and automatic compensation function;

Menu interface input.






solution

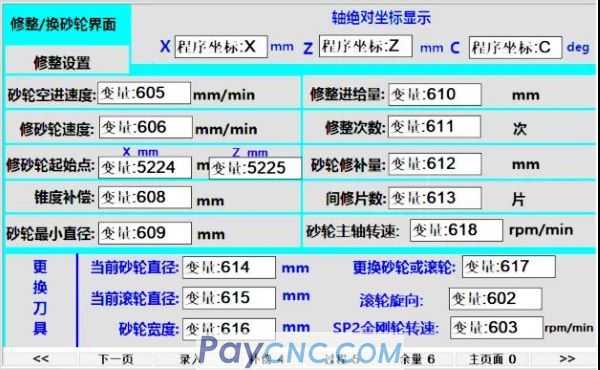

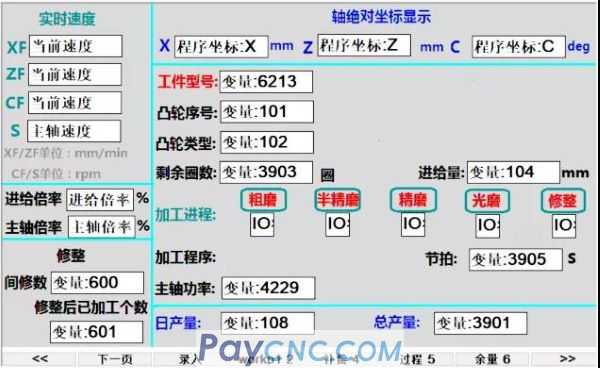

Configure user-defined graphic parameter interface to monitor information such as spindle power and grinding status;

Grinding slender work with center frame;

It adopts CNC two-axis interpolation linkage to realize full-closed feedback control of the grinding wheel feed axis (X axis) and workpiece rotation axis (C axis).





Application effect

Realize the precise positioning motion of the cam non-circular surface, completely solve the shortcomings of traditional model processing machine tool, such as poor processing flexibility, difficult mold processing, and complicated maintenance;

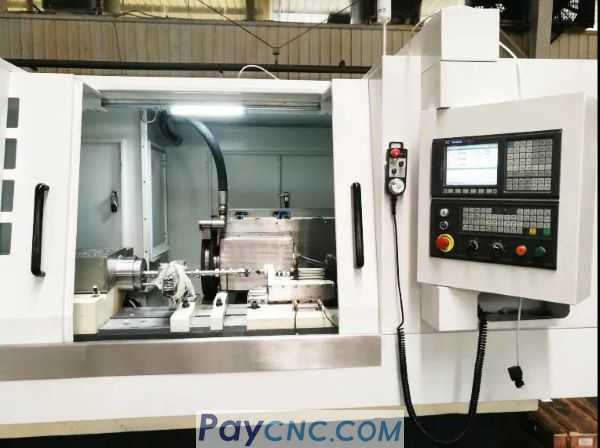

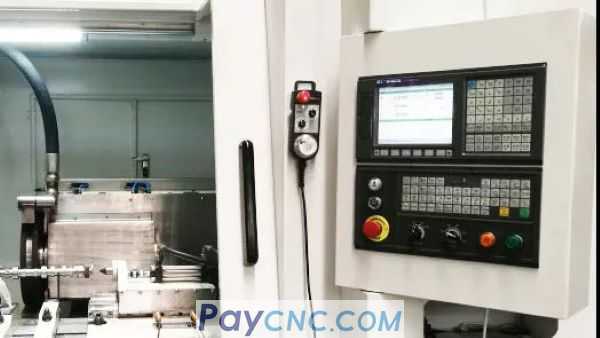

It adopts 986 numerical control system, which has all-round control functions such as grinding process program transformation, workpiece quality management, machine tool status monitoring, fault self-diagnosis and abnormal alarm. The menu-type interface is easy to input.
