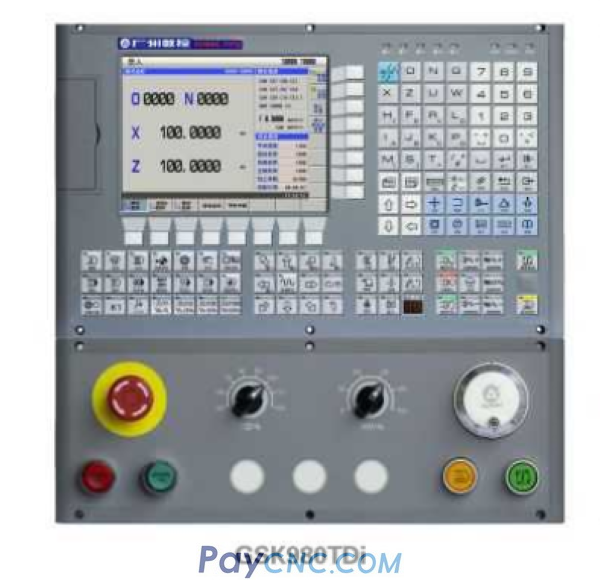

GSK980TDi Alarm List and PLC Alarm
Paycnc.com - PAY for CNC components
Information
Tech Support
FAQ
GSK980TDi Alarm List and PLC Alarm

1.CNC alarm
No. Content Remark
000 Emergent stop alarm and ESP open circuit
001 Called programs do not exist or cannot be opened
003 Characters are less than 2 or more than 11 for one word
004 Address error (address is A~Z)
  Illegal command value
006 Block numbers are negative or with decimals
007 Illegal G commands
008 Execute G96 when the spindle analog voltage control is invalid
009 Command movement distance when G commands in group 00 and 01 are not input and there are invalid commands in group 01
  There are the same addresses in one block
011 There are more than 40 words in one block
012 Command values exceed their valid range or command addresses which cannot be omitted is omitted
013 Input S commands except for S00~S99 when the spindle analog voltage control is invalid
014 G commands in group 00, 01 and 12 cannot be in the same one block
  Execute M commands for spindle automatic gear shifting when the spindle analog voltage control is invalid
016 Tool offset numbers exceed their valid range(0~32)
017 Tool number exceeds the range of No.084 parameter
018 The data specified by the interpolation command cannot form a correct curve
019 The tool group number exceeds the range（ 1~32） in the tool life management
  Cannot execute T command in C tool nose radius compensation, cancel it
0021 G71~G78,G90,G92,G94 can only be used in G18 plane
0022 Forbid to use plane exchange code G17~G19 here
0023 The programming radius of G05 code is out of allowable range
024 There is no G11 or G13.1 in the program
  There is no tool in the current tool group in the tool life management
026 The current tool group has not been defined in the tool life management
027 The tool quantity exceeds 8 in the current tool group in tool life management
028 The tool life management function is invalid and G10 L3 cannot be used
  G17~G19 codes Cann't be executed in C tool compensation or cylindrical interpolation
032 Absolute value of R is more than that of U/2 in G90, G92,G92.1
033 Absolute value of R is more than that of W in G94
040 There are more than 100 blocks in G70~G73
041 Ns and Nf are reversed each other in G70~G73
042 There is no Ns or Nf or they exceed their allowed range in G70~G73

No. Content Remark
043 There is no Ns or Nf in G70~G73
044 Call subprograms in G70~G73
045 Ns does not command G00 or G01 in G70~G73
046 Initial blocks are employed with the forbidden G commands in G70~G73
047 Unusable G code is in the block specified by Q in G70,G71,G72,G73
050 G71~G72 command can't satisfy the condition of single increase or decrease
051 Single infeed exceeds its allowed range in G71 or G72
052 Single tool retraction exceeds its allowed range in G71 or G72
053 The cycle starting point is in the closed area formed by the starting point and end point of the finishing path in G71 or G72
054 Flute quantity is more than 10 in G71 or G72
055 X/ Z value is not specified in the first block or the movement is 0 in G71
056 X/ Z value is not specified in the first block or the movement is 0 in G72
057 Cycle times is less than 1 or more than 99999 in G73
060 Single tool retraction R(e) exceeds its allowed range in G74 or G75
061 The tool retraction is negative at the end of cutting in G74 or G75
0062 Z value is 0 or not input in G74
0063 Q is in default or out of range in G74
0064 X single cutting value(P) exceeds its allowed range in G74
0065 X value is 0 or not input in G75
0066 P is in default or out of range in G75
0067 Z single cutting value(Q) exceeds its allowed range in G75
0069 Starting point coordinates are abnormal when cycle ends and returns to starting point
0070 The tool starts from the midway in taper screw thread cutting in G76/G78
0071 Min. cutting value exceeds its allowed range in G76 or G78
0072 Finishing allowance exceeds its allowed range in G76 or G78
0073 Tooth height is less than finishing allowance or 0 in G76 or G78
0074 Cycle times exceeds its allowed range in G76 or G78
0075 X/Z movement distance in G76 is zero
0076 There is no specified tooth height P in G76 or G78
0077 There is no the first cutting depth Q or Q is 0 or Q is not input in G76 or G78
0078 Tool nose angle is more than or equal to thread angle in G76 or G78
0079 Cutting value of G78 is out of range(0,1)
0080 Cutting mode of G78 is out of range(0,1,2,3)
0082 Have no the measured position arrival signal in parameter specifying area in automatic tool offset(G36,G37)
0083 Specifying an invalid axis or a command is incremental in automatic tool offset (G36,G37). Modify the program
0084 Have the measured position arrival signal in area set by the parameter in automatic tool offset(G36,G37)
0085 The distance between the starting point and the target is less than the setting (142,143) in automatic tool offset(G36,G37), have no set the rapid motion area

No. Content Remark
0086 The parameter (142,144) or (143,145) area setting are wrong in automatic tool offset(G36,G37)
0087 Firstly create or set the coordinate system before executing G36,G37
0088 Firstly set the correct tool number and the compensation number before executingG36,G37
0089 The tool offset is in protection state, and cannot be written
0090 When tool offset measure executes the direction input B operation, axis movement directions are interlocked
0092 Can't find the thread repair position. An soft key [THD.REPAIR RECORD POS] displayed on the ABSOLUTE screen. In JOG,HND or STEP mode, press the key record the thread repair position.
0093 The thread repair position beyond the thread repair program, please check the program and the thread repair position
0095 Subprogram numbers are not input or are illegal when M98 calls them
0096 Layers of nested subprograms are more than 4
0097 Calling programs in M98 is the current one(main program)
0099 Use M98 or M99 in C tool radius compensation
0103 Denominator is 0 for division operation in G65
0104 G65 commands illegal H command
0105 Macro variable number of G65 is illegal(error)
0109 P command value isn’t variable in G65
0111 H99 user alarm number in G65 exceeds its range
0112 Block number of macro command (G65)skip or M99 program return exceeds their range
0113 There is no block number for block skip or M99 program return
0114 G65, G66 command format are mistaken
