01Application of GSK986Gs CNC system six-channel multi-station grinding automatic machine

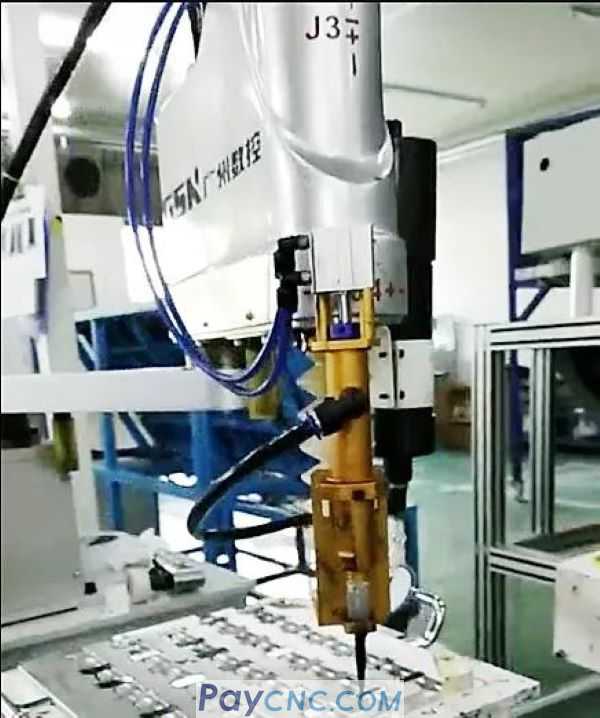

The horizontal robot replaces the manpower to complete the glue application of the glass support.

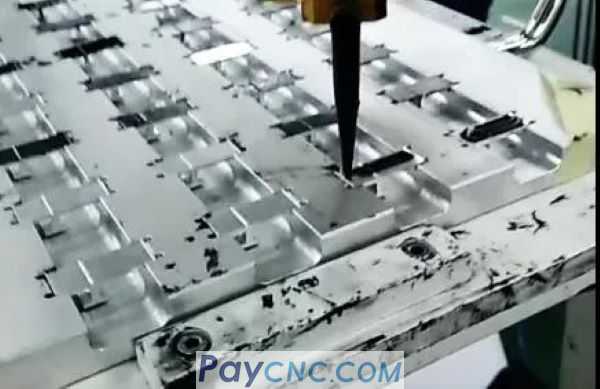

Adopt the pallet design, the worker puts the parts on the pallet according to the requirements, and then puts the entire plate of parts into the robot glue station, the robot automatically glues, using 310ml of PU glue.



solution

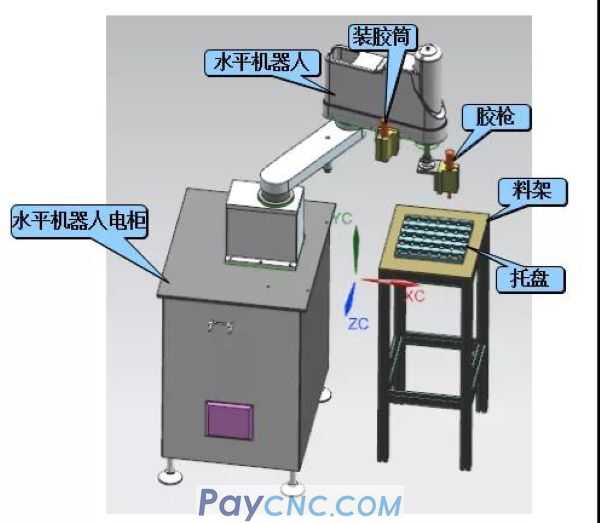

One RSP600A15 horizontal robot, supporting glue application table, glue supply system, automatic glue gun, tray, machine installation base, etc., to complete the glue application task of glass.



Application effect

The glue quality is stable and the consistency is high, which greatly reduces the manual work intensity;
Compatible with different products, working 24 hours.








02 GSK RSP600B15 horizontal robot used in wood handling applications

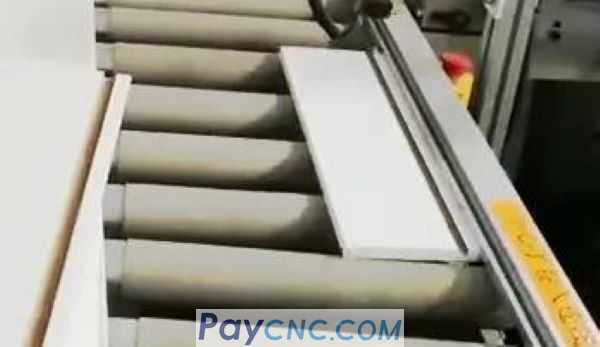

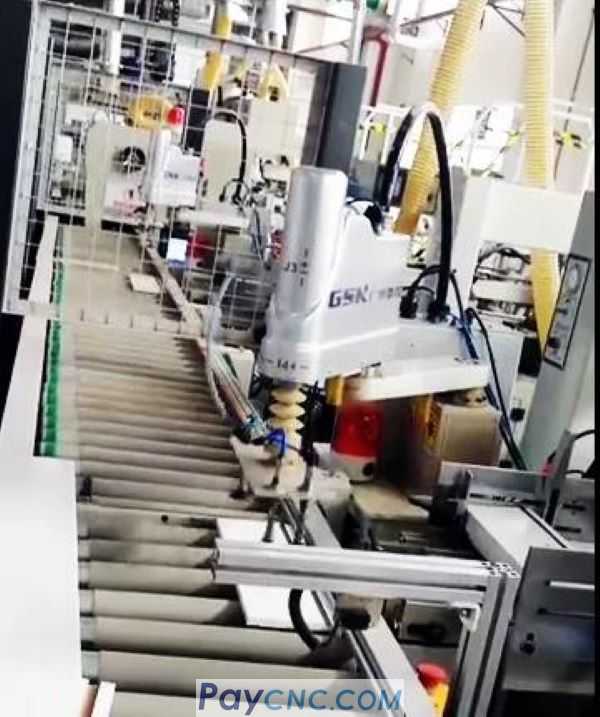

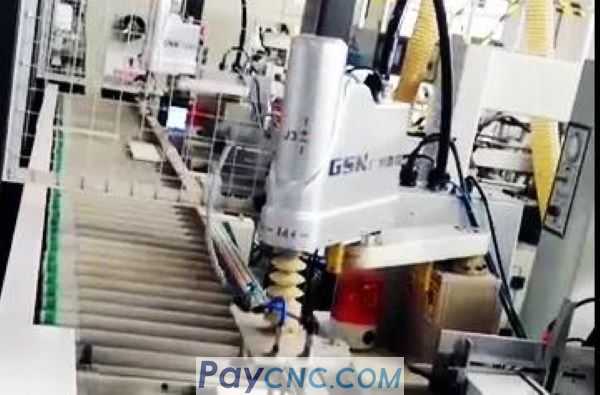

The horizontal robot replaces the manpower to complete the wood handling and transfer operation;
The wood flows from the front end to the end of the conveyor line, and the robot transports the wood to the storage tooling of the other conveyor line at the end of the conveyor line, and transports one or two pieces of wood at a time (depending on the size of the plank).





solution

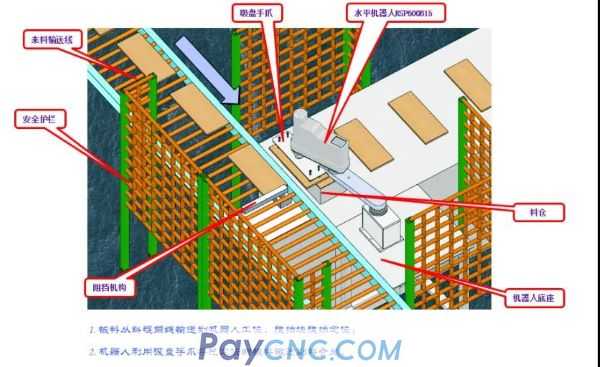

Two RSP600B15 horizontal robots, equipped with conveyor line positioning mechanism, adjustable robot claws, machine mounting base, etc., complete the wood handling operations




Application effect

The effect of wood handling is stable, achieving the goal of reducing staff and increasing efficiency for customers;
Compatible with different products, working 24 hours.
