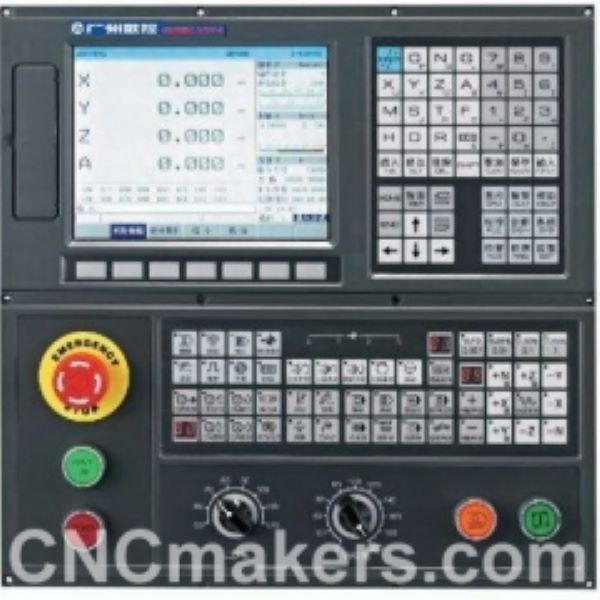

GSK 218MC/GSK218MC-H/GSK218MC-V Alarm List
GSK 218MC/GSK218MC-H/GSK218MC-V Alarm List
| Table4 The definition of the PLC extermal alarm | ||
| PMC alarm No. |
A add. | Alarm Content |
| 1200 | A000.0 | Air pressure detection abnormality |
| 1201 | A000.1 | Lubrication detection abnormality |
| 1202 | A000.2 | Lubricating motor detection abnormality |
| 1203 | A000.3 | Cooling motor overload |
| 1204 | A000.4 | Chip-removal motor detection abnormality |
| 1205 | A000.5 | Pressure grease pump motor detection abnormality |
| 1207 | A000.7 | Machine llumination lamp detection abnormality |
| 1208 | A0010 | Machine controllable cabinet temperature detection abnormality |
| 1209 | A001.1 | Machine body temperature detection abnormality |
| 1210 | A001,2 | Machine vibration frequency detection abnormality |
| 1211 | A001.3 | Pressure grease temperature detection abnomality |
| 1212 | A0014 | Excessive low of the pressure grease |
| 1213 | A0015 | Fail to ready the machine |
| 1214 | A0016 | Fail to rotate the spindle because its shift is abnormal |
| 1215 | A001.7 | Firstly perform the T code and then execute the M06 code |
| 1216 | A002.0 | Fail to rotate the spindle in the tool releasing state |
| 1217 | A002.1 | Spindle rotation tool can not be released |
| 1218 | A002.2 | Tool magazine abnormal stop, confirm the tool number again |
| 1219 | A002.3 | Fail to rotate the spindle because the manipulator is out of the origin |
| 1220 | A002.4 | Spindle tool clamping detection abnormality |
| 1221 | A002.5 | Spindle tool releasing detection abnormality |
| 1222 | A002.6 | Spindle unit temperature detection abnormality |
| 1223 | A002.7 | Spindle velocity detection abnormality |
| 1224 | A003.0 | Spindle motor enabling detection abnormality |
| 1225 | A003.1 | Spindle orientation in-position detection abnormality |
| 1226 | A003.2 | Spindie shift abnormality |
| 1227 | A003.3 | Failure to cycle start because the manipulator is out of the origin position |
| 1228 | A003.4 | Failure to cycle start because the tool case is in the vertical position. |
| 1229 | A003.5 | Firstly perform the mechanical zero return when executing the M06 code |
| 1230 | A003.6 | Fail to perfom the tol-change when the spindle tool is in the releasing state |
| 1231 | A003.7 | Fail to perfom the tool-change when the tool case is not in the horizontal position |
| 1232 | A004.0 | Tool magazine rotation in-position detection abnormality |
| 1233 | A004.1 | Tool magazine rotation motor overload |
| PMC A add. Alarm Content alarm No. |
||
| 1234 | A004.2 | Manipulator motor overload |
| 1235 | A004.3 | Tool magazine motion in-position detection abnormality |
| 1236 | A004.4 | Tool magazine zero turn detection abnormality |
| 1237 | A004.5 | Tool magazine origin position lost, return to the zero again |
| 1238 | A004.6 | Tool case horizontal/vertical detection abnormality |
| 1239 | A004.7 | Fail to rotate the spindle because the tool case is out of the horizontal position |
| 1240 | A005.0 | Tool magazine abnormality, return to the zero again |
| 1241 | A005.1 | Tool case vertical direction detection abnormality |
| 1242 | A005.2 | Tool case horizontal direction detection abnormality |
| 1243 | A005.3 | Tool magazine zero position setting enabled |
| 1244 | A005.4 | Tool-change abnormal stop to sure the normal tool magazine |
| 1245 | A005.5 | There is no code tool number in the table or code tool number is repeated |
| 1246 | A005.6 | Spindle releasing/clamping detection abnormality |
| 1247 | A005.7 | Spindle orientation time-sequence detection abnormality |
| 1248 | A006.0 | Adequate condition for T code tool number |
| 1249 | A006.1 | Fail to infeed but the spindle is with tool |
| 1250 | A006.2 | Fail to infeed because the current tool number is different between the spindle and tool magazine |
| 1251 | A006.3 | Turn off the power |
| 1252 | A006.4 | Do not move the Z axis when tool clamping |
| 1253 | A006.5 | Carefully operate the tool magazine debugging mode |
| 1254 | A006.6 | Do not cycle start in the tool magazine debugging mode |
| 1255 | A006.7 | Fail to return to the origin when tool clamping |
| 1256 | A007.0 | Fail to the tool-change position when tool clamping |
| 1257 | A007.1 | Fail to return to the tool-change position because the spindle under positioning |
| 1258 | A007.2 | Fail to return to the tool-change position because the tool abnormality |
| 1260 | A007.4 | Do not cycle start in the manual tool-change position return |
| 1261 | A007.5 | Fail to retract due to out of the origin |
| 1262 | A007.6 | Exceed the safety position |
| 1263 | A007.7 | Carefully operate the manipulator debugging mode |
| 1264 | A008.0 | Spindle velocity position mode conversion abnormality |
| 1265 | A008.1 | Spindle position velocity mode conversion abnormality |
| 1267 | A008.3 | Fail to operated because the tool case does not vertical to the manipulator |
| 1268 | A008.4 | Fail to operate because the manipulator does not at the origin |
| 1269 | A008.5 | Manipulator operation abnormality interruption |
| 1270 | A008.6 | Manipulator tool inspection abnormality |
| 1271 | A008.7 | Fail to operate the manipulator because the spindle does not orientate |
| 1272 | A009.0 | Fail to operate the manipulator because the spindle tool does not |
| PMC alarm No. |
A add. | Alarm Content |
| release | ||
| 1273 | A009.1 | Fail to operate the manipulator because the spindle tool does not clamp |
| 1274 | A009.2 | Do not perform the tool-pivoting because the manipulator does not at the origin |
| 1275 | A009.3 | Do not perform the tool-retraction because the manipulator does notat the origin |
| 1276 | A009.4 | Do not rotate the cutter-head because the manipulator does not at the origin |
| 1277 | A009.5 | Do not rotate the cutter-head because the tool case does not put on the horizontal place |
| 1278 | A009.6 | The manipulator can not be operated because the Z axis does not return to the 2nd reference position. |
| 1279 | A009.7 | Manipulator origin detection abnormality |
| 1280 | A010.0 | Enforce to stop the rotation because the tool magazine rotation abnormality |
| 1288 | A011.0 | Index worktable releasing/clamping detection overtime |
| 1289 | A011.1 | Index worktable clamping/releasing detection abnormality |
| 1290 | A011.2 | Fail to use the index worktable clamping equipment |
| 1291 | A011.3 | Fail to rotate because the index worktable does not release |
| 1292 | A011.4 | Fail to move because the index worktable does not clamp |
| 1293 | A011.5 | Do not cycle start because the safety door opens |
| 1294 | A011.6 | Do not shift in the rigid tapping, it is necessary to cancel the rigid tapping and then shift. |
| 1 360 | A020.0 | Low lubrication pressure grease level |
