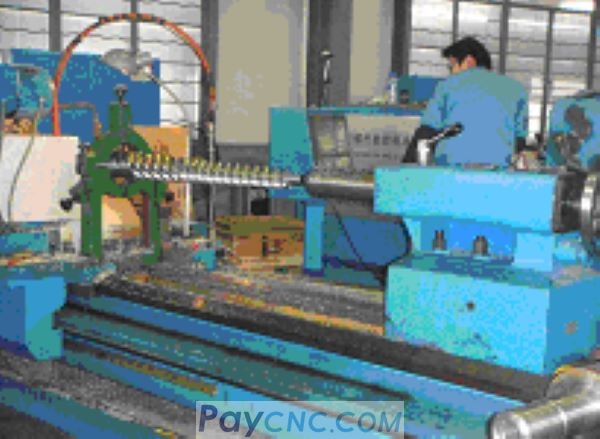

GSK 218MC CNC
technical parameter
|
数控系统控制轴数 |
|
三轴（C、X、Z、） |
|
控制精度 |
|
一个脉动的对应值 |
|
最大铣削直径 |
mm |
φ200 |
|
最大铣削长度 |
mm |
1600 2600 3600 4600 7600 9600 |
|
最大夹持工件长度 |
m |
2、3、4、5、8、10 |
|
滚珠丝杠Z/X |
mm |
φ63/φ32 |
|
Z、X进给精度 |
mm |
0.01 |
|
纵向（Z轴） |
m/min |
0～4000 |
|
横向（X轴） |
m/min |
0～1500 |
|
功率 |
kW |
4.7/4.7/2.8 |
|
输出额定转矩 |
Nm |
30/30/18 |
|
输出额定转速 |
r/min |
1500 |
Application effect
◇ Z, X, C three-axis linkage, to achieve a variety of single-head, multi-head variable pitch and variable diameter special-shaped screw processing;
◇ G07 special parabolic spiral interpolation command can process the screw with equal pitch and variable pitch;
◇ The system can perform screw backlash compensation and two-way pitch error compensation to ensure machining accuracy;
加工 The processing roughness can reach Ra3.2, and the screw lead error is 0.08mm/300m.
