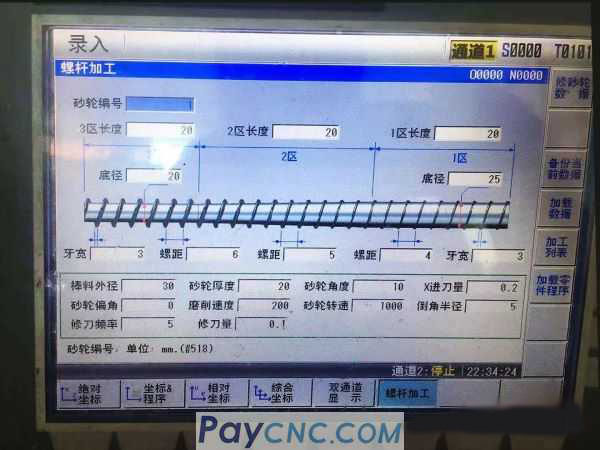

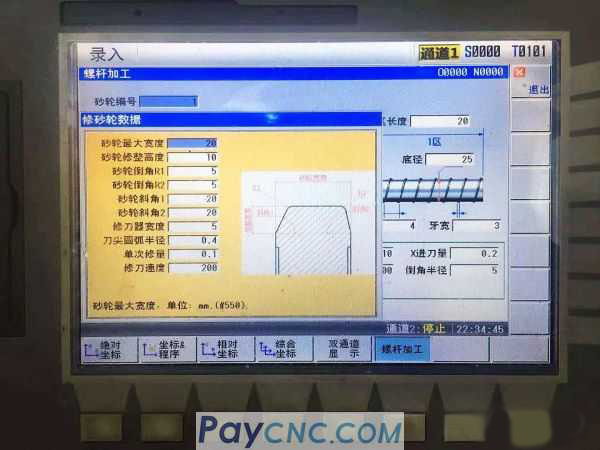

Design a custom interface for grinding screws, and display parameters such as grinding screw, processing technology, and grinding wheel through a custom interface;
Achieve screw size, straight screw, variable pitch screw, straight screw, tapered screw, etc.



solution

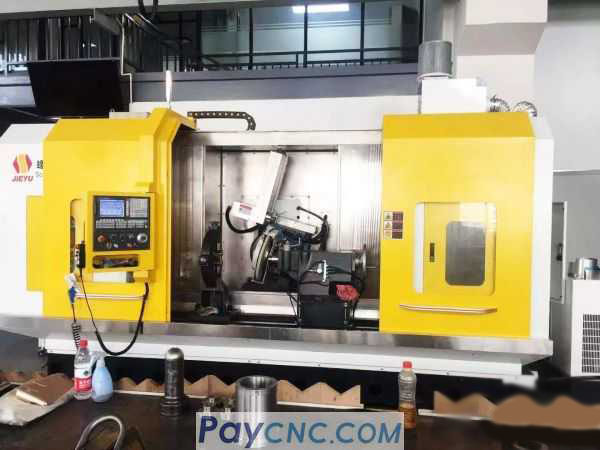

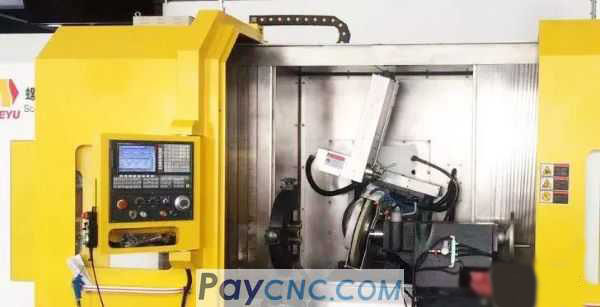

The machine has a total of 6 feed shafts with optional dual channels, channel 1 with 4 feed shafts to grind screw workpieces, and channel 2 with 2 feed shafts for special grinding wheels;
Design a custom interface based on relevant information provided by the user, which can save and load optimized processing parameters;
The editing macro program corresponds to custom interface macro variables, and various sizes and shapes can be processed by modifying various parameters of the custom interface.







Application effect

Can improve screw processing efficiency;
Easy to operate, no user programming is required, just modify a few processing parameters of the custom interface.
