Production lead time: 20 days

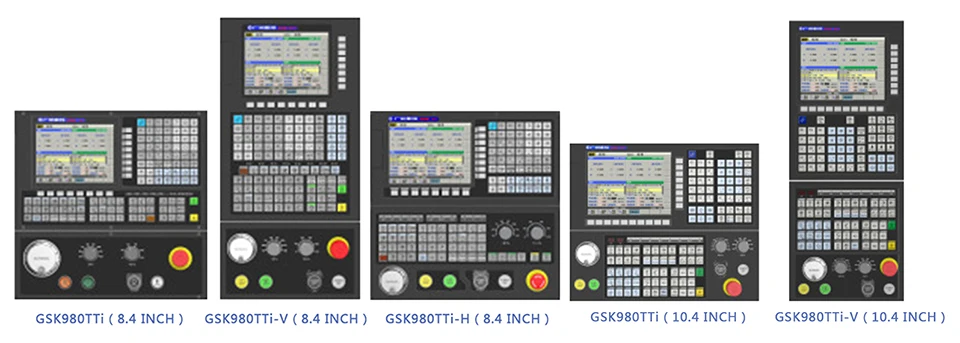

GSK 980TTi double channel CNC lathe system
GSK 980TTi is a new member of the GSK 980TD family. It is a bus product developed on the basis of the GSK 980TTC two-channel system.GSK 980TTi based on GSK-Link industrial fieldbus, standard bus-type servo drive unit and multi-turn 23-bit absolute encoder servo motor, achieve 1nm position accuracy, servo parameters online configuration and no block mechanical zero.At the same time, invited experts in the field of well-known industrial design to undertake a brand new design of the exterior structure, which makes people find everything new and fresh.In addition, a lot of improvement has been made in efficiency improvement, intelligent application, humanized operation, user secondary development and other aspects.
(Note: detailed specifications, models, prices and other inquiries, please contact customer service to negotiate, do not directly place an order, otherwise not shipped)
●2 channels, 6 feed shafts, 2 analog spindles, 2 encoder feedback, 2 hand pulses;
●Based on GSK link industrial fieldbus;
●The minimum moving unit is 1nm, and the maximum moving speed is 100M / min
●Support dual spindle / dual tool holder, single spindle / dual tool holder, dual spindle and single tool holder applications;
●It has unique functions such as simple synchronization control, hybrid control, overlap control, inter channel interference detection, waiting for M code and so on;
●It supports online configuration of servo parameters and implementation of servo status
